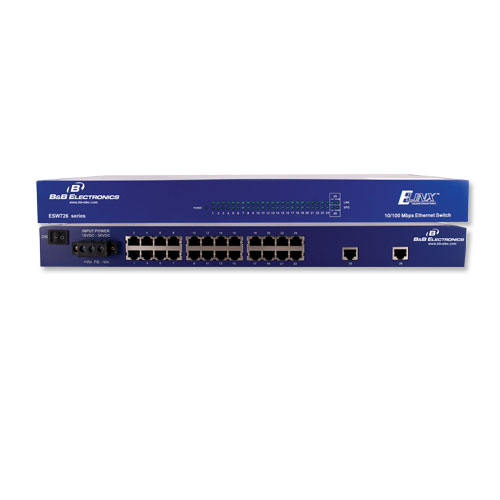

Advantech BB-ESWG726-2SFP

B&B Electronics Elinx family of Industrial rack mount Ethernet switches have been designed to meet light Industrial communication requirements. The ESW726 Managed family offers a variety of Industrial models. The switch configurations range from 26 ports RJ45 copper to RJ45 copper with multi mode, single mode, and or SFP gigabit ports.

Two ports can be used for network redundancy by implementing our RingOn technology. RingOn has been developed to provide a rapid recovery system for Industrial networks. If any part of the ring disconnects the network communications will automatically be restored by RingOn technology.


Web-based Management

Each switch has an embedded HTML web site residing in flash memory, offering advanced management features and allows users to manage the switch from anywhere on the network through a standard web browser.


VLAN Configuration

A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. This allows you to isolate network traffic so that members of a VLAN will only receive traffic from other members of the same VLAN. Creating a VLAN from a switch is the logical equivalent of reconnecting a group of network devices to another Layer 2 switch. However, since it is a virtual network, the network devices remain connected to the same switch physically. Both port-based and 802.1Q (tagged-based) VLAN are supported.


IGMP

The Internet Group Management Protocol (IGMP) is a communications protocol used to manage the membership of Internet Protocol multicast groups. IGMP is used by IP hosts to establish multicast group memberships. This allows the port to detect IGMP query and report packets and manage IP multicast traffic through the switch.

SPECIFICATIONS

Technology
Standards:	IEEE802.3, 802.3u,802.3ab,802.3z, 802.3x
Processing Type:	Store and forward with IEEE802.3x full duplex, non-blocking flow control
Flow Control:	IEEE802.3x flow control, back pressure flow control
Packet buffer memory:	256 K bytes
Address Table Size	8K MAC Addresses
Interface
RJ45 Ports:	10/100BaseT(x) auto negation, Full/Half duplex, auto MDI/MDI-connection
Fiber Ports:	100BaseFX ports (multi-mode or single-mode with SC connector) Mini-GBIC SFP Combo Ports
LED Indicators:	Power, Link, Speed, System Status
Fiber Optics
Fiber type Distance Wavelength Transmit Power Receive Sensitivity Multi-mode 2 km 1310 nm ⁻ 20 to ⁻ 14dBm ≤ - 33.9 dBm Single-mode 20 km 1310 nm - 15 to - 14 dBm ≤ - 31 dBm
Power
Input Voltage	18 to 36 VDC
Power Use	20W Max
Input Connection	Terminal Block
Protection	Reverse Polarity Protection
Mechanical
Enclosure	IP 30 Metal
Dimensions	443 x 44 x 220
Installation:	19” Rackmount / 1U
Environmental
Op. Temperature	-10 to 60C
Storage Temperature	-40 to 80 °C
Op. Humidity	0 to 95% Non-condensing
MTBF	200,000 hours
Regulatory Approvals
	CE, FCC,
RoHS	-Yes
