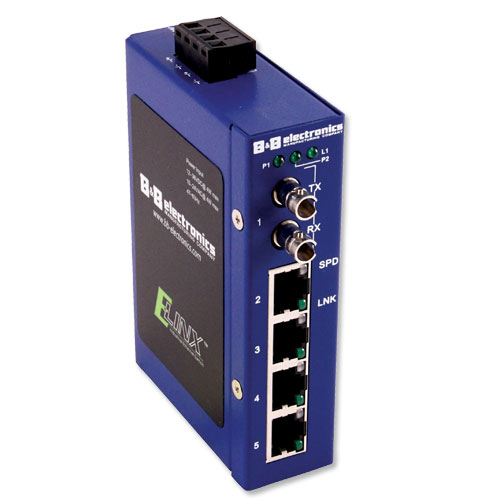

Advantech BB-ESW205 Serie
ETHERNET UNMANAGED SWITCH 5 PORT 10/100
- UL/cUL Class I Division 2 Groups A,B,C, and D
- EN61000-6-2 - Generic standard for (heavy) industrial environments
- NEMA TS2 options
- Shock, vibration, tested
- Operating temperature
- -10° to 60°C (Standard)
- -40° to 75°C (-T models)
- 10/100M, full/half duplex, MDI/MDI-X (Auto-negotiate)
- Supports IEEE 802.3, 802.3u, and 802.3x standards
- Industrial IP30 rated DIN rail case with 6 way panel mount options
- Dual power inputs, 12 to 36 VDC and 10 to 24 VAC
- 2K MAC addresses
Designed to fit many applications, the ESW205 and ESW208 series are more than just an Ethernet switch with low pricing. They are plug-and-play industrial Ethernet Switches with an compact IP30 DIN rail case, 6 way mountable panel brackets, LEDs for Power, (Link / Speed / Activity for each port), 12 to 36 VDC and 10 to 24 VAC power inputs with removable terminal blocks. These switches are perfect for any applications that require special protection from hash environments.
Choose a switch with five or eight copper ports, or a combination of copper and fiber ports. Multi-mode fiber models extend range up to 2 km. Single-mode fiber models extend range up to 20 km. All models require an external power supply (sold separately).
The switch ships with 4 panel mount clips giving the user 6 different ways to panel mount the unit.
SPECIFICATIONS
TECHNOLOGY | ||||||||||||||||||||||||||||||||||||
Standards: | IEEE802.3, 802.3u, 802.3x | |||||||||||||||||||||||||||||||||||
Processing Type: | Store and forward with IEEE802.3x full duplex, non-blocking flow control | |||||||||||||||||||||||||||||||||||
Flow Control: | IEEE802.3x flow control, back pressure flow control | |||||||||||||||||||||||||||||||||||
Packet buffer memory: | 64K bytes | |||||||||||||||||||||||||||||||||||
Address Table Size | 2K MAC Addresses | |||||||||||||||||||||||||||||||||||
INTERFACE | ||||||||||||||||||||||||||||||||||||
RJ45 Ports: | 10/100BaseT(X) auto negation, Full/Half duplex, auto MDI/MD-X | |||||||||||||||||||||||||||||||||||
Fiber Ports: | 100BaseFX, (multi-mode or single–mode with LC connectors) | |||||||||||||||||||||||||||||||||||
LED Indicators: | Power, (Link / Speed / Activity for each port) | |||||||||||||||||||||||||||||||||||
POWER | ||||||||||||||||||||||||||||||||||||
Input Voltage | 12 to 36 VDC and 10 to 24 VAC | |||||||||||||||||||||||||||||||||||
Power Consumption | 4.00 W Max | |||||||||||||||||||||||||||||||||||
Input Connection | Removable Terminal Block | |||||||||||||||||||||||||||||||||||
Protection | Reverse Polarity Protection | |||||||||||||||||||||||||||||||||||
ENVIRENMENTAL | ||||||||||||||||||||||||||||||||||||
Operating Temperature | -10 to 60°C (14 to 140°F) | |||||||||||||||||||||||||||||||||||
Wide Temperature (-T Model) | -40 to 75°C (-40 to 167°F) | |||||||||||||||||||||||||||||||||||
Storage Temperature | -40 to 80°C (-40 to 176°F) | |||||||||||||||||||||||||||||||||||
Humidity | 10 to 95% Non-condensing | |||||||||||||||||||||||||||||||||||
MTBF | 200,000 hours | |||||||||||||||||||||||||||||||||||
MTBF Calculation | Parts count reliability prediction | |||||||||||||||||||||||||||||||||||
MECHANICAL | ||||||||||||||||||||||||||||||||||||
Enclosure | IP30 DIN mount metal case | |||||||||||||||||||||||||||||||||||
Dimensions (5 ports) | H 112mm x W 30mm x D 75.2 mm (4.41 in x 1.18 in x 2.96 in) | |||||||||||||||||||||||||||||||||||
Dimensions (8 ports) 8 copper, 6 copper/2 fiber ports | H 130 mm x W 44 mm x D 105 mm (5.1 in x 1.73 in x 4.13 in) | |||||||||||||||||||||||||||||||||||
Dimensions (8 ports) 4 copper/4 fiber ports | H 130mm x W 44mm x D 105mm (5.1 in X 1.7 in x 4.13 in) | |||||||||||||||||||||||||||||||||||
Installation | 35 mm DIN or 6 way panel mount | |||||||||||||||||||||||||||||||||||
Fiber Optics | ||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
REGULATORY APPROVALS | ||||||||||||||||||||||||||||||||||||
CE, FCC, RoHS | ||||||||||||||||||||||||||||||||||||
HAZARDOUS LOCATIONS | ||||||||||||||||||||||||||||||||||||
UL/cUL Class I Div 2 Groups A,B,C, and D | ||||||||||||||||||||||||||||||||||||
SPECIFICATIONS-LEVEL 3, EN 61000-6-2: 2006 GENERIC STANDARTS FOR {HEAVY) INDUSTRIAL ENVIRONMENTs | ||||||||||||||||||||||||||||||||||||
|
ORDERING INFORMATON
Model Number | 10/100 Copper | Multi-Mode Fiber | Single-Mode Fiber |
BB-ESW205 | 5 | ||
BB-ESW205-MT | 4 | 1 (ST) | |
BB-ESW205-MC | 4 | 1 (SC) | |
BB-ESW205-ST | 4 | 1 (ST) | |
BB-ESW205-SC | 4 | 1 (SC) | |
BB-ESW205-T* | 5 | ||
BB-ESW205-MT-T* | 4 | 1 (ST) | |
BB-ESW205-MC-T* | 4 | 1 (SC) | |
BB-ESW205-ST-T | 4 | 1 (ST) | |
BB-ESW205-SC-T* | 4 | 1 (SC) | |
BB-ESW208 | 8 | ||
BB-ESW208-2MT | 6 | 2 (ST) | |
BB-ESW208-2MC | 6 | 2 (SC) | |
BB-ESW208-2ST | 6 | 2 (ST) | |
BB-ESW208-2SC | 6 | 2 (SC) | |
BB-ESW208-T* | 8 | ||
BB-ESW208-2MT-T* | 6 | 2 (ST) | |
BB-ESW208-2MC-T | 6 | 2 (SC) | |
BB-ESW208-2ST-T* | 6 | 2 (ST) | |
BB-ESW208-2SC-T* | 6 | 2 (SC) | |
BB-ESW208-4MT-T* | 4 | 4 (ST) | |
BB-ESW208-4MC-T* | 4 | 4 (SC) | |
BB-ESW208-4ST-T* | 4 | 4 (ST) | |
BB-ESW208-4SC-T* | 4 | 4 (SC) |
-T Models available in wide temperature
* NEMA TS2 models
ACCESSORIES
BB-DFMM-SCSC-1M | - Multi-Mode Duplex Fiber Cable, SC to SC, 1 Meter |
BB-MDR-20-24 | - DIN rail mount power supply 24VDC, 1.0 A output power |
BB-MDR-40-24 | - DIN rail mount power supply 24VDC, 1.7 A output power |
BB-EIRSP1 | - Industrial DIN rail mount Ethernet Surge Suppressor |
