Advantech BB IMC-784I-SFP
Managed Modular Media Converter,
1000Mbps, 2xSFP
- A single-wide module that allows maximum use of slots in multi-port chassis
- Supports OAM and VLAN
- Supports Link Fault Pass Through (LFPT)
- The SFP port supports both copper and fiber SFPs
- SNMP manageable
- Provides a RS-232 CLI (command line interface) console port
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance.
also known as iMcV 858-18121
The IMC-782-SFP media converter connects a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines 10/100/1000Mbps to Gigabit fiber media conversion with an advanced feature set including OAM (operation, administration, and management), extra-tagging, and Ethernet type control functions for network management and troubleshooting. Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a versatile Gigabit solution.
The IMC-784I-SFP comes with two SFP ports for the providers' network connection and two fixed 10/100/1000Base-T copper ports with four distinct DIP switch selectable configurations: 1+1 uplink protection revertive mode, 1+1 uplink protection non-revertive mode, a 4-port Gigabit switch, and a dual copper to fiber SFP media/mode converter. The software management software for IMC-780 series, iView2, allows users to perform remote configuration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link condition and reporting data traffic statistics.
Specifications
Technical | |
---|---|
Supports Gigabit copper and fiber SFPs | |
IEEE 802.3u, 802.3ab, 802.3z | |
SFP—MSA compliant | |
Supports 802.3ah OAM (Operation, Administration & Management) | |
802.1ad Extra Tagging (Q-in-Q) | |
802.3 1Q VLAN | |
AutoCross for MDI/MDIX | |
Supports diagnostic LEDs | |
Hot-swappable architecture | |
SNMP V1 and V2c compatible | |
Includes loopback test modes | |
Supports Link Fault Pass Trough | |
1+1 Uplink Protection (IMC-784I-SFP) | |
Environment | |
Operating Temperature | 0 to +50 °C (+32 to +122 °F) (IMC-782-SFP) |
-40 to +85 °C (-40 to +185 °F) (IMC-784I-SFP) | |
Storage Temperature | -40 to +85 °C (-40 to +185 °F) |
Operating Humidity | 5 ~ 95% (non-condensing) |
0 ~ 10,000 ft. altitude | |
MTBF | 522,644 Hours |

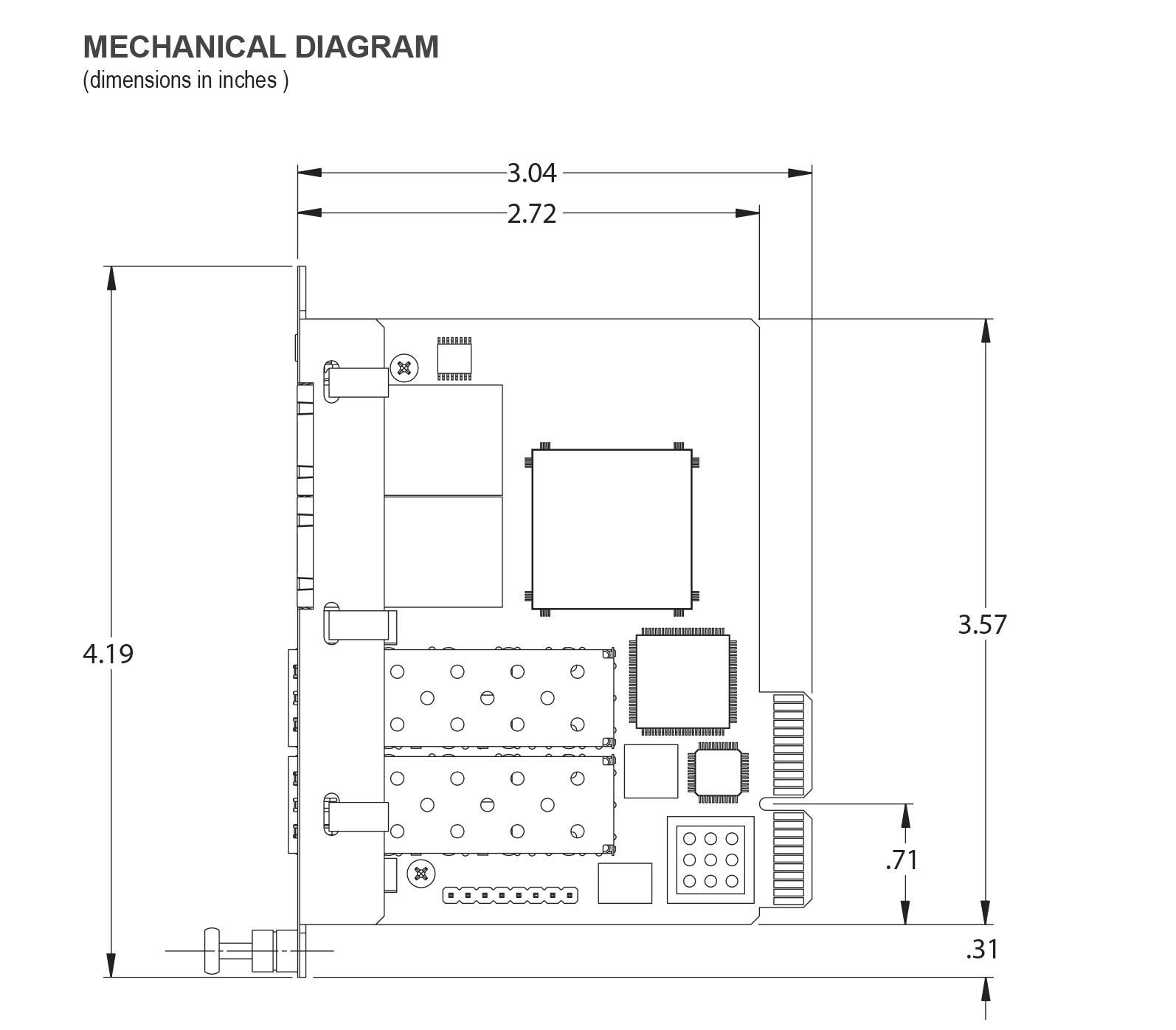

Mechanical | |
Dimensions (H x W x D) | 10.74 x 2.0 x 7.05 cm (4.19 x 0.78 x 2.75 in) |
Weight | 0.136 kg (0.30 lb) (IMC-782-SFP) |
0.11 kg (0.24 lb) (IMC-784I-SFP) | |
Certifications | |
FCC Class A | |
CE, UL/cUL | |
CSA (IMC-782-SFP) |
* Simple Network Management Protocol-based element management software.
To configure, update, manage and monitor from a central location
Ordering Information
10/100/1000 Mbps Managed Fiber Series
Part Number | Also Known As | Optical Mode | Distance | Optical Connector |
---|---|---|---|---|
IMC-782-SFP | 856-14201 | Various | Various | 1 x SFP |
IMC-784I-SFP (Wide Temp.) | 858-18121 | Various | Various | 2 x SFP |
* SFP fibers sold separately – available at www.advantech.com
