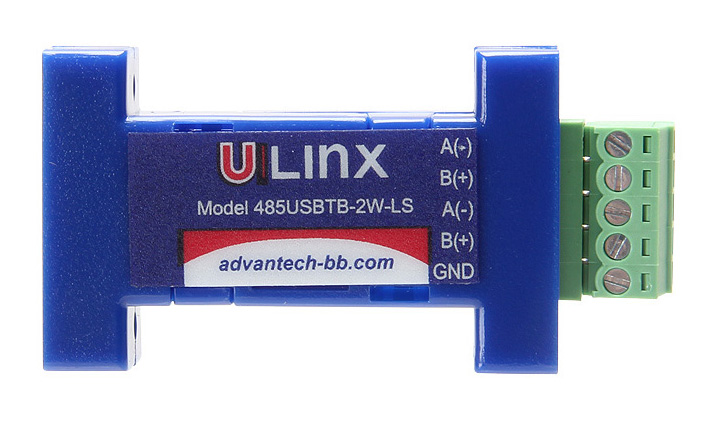

Advantech BB-485USBTB

USB to RS-485 TB 2-Wire ( 4-Wire) Miniature Converter
- (Locked Serial Number)

Advantech BB-485USBTB
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • Connect RS-485 Devices to Your USB Port
  • Locked Serial Number ( only -LS Model)
  • Perfect for Field Service Applications
  • Compact - Fits Easily Into Any Laptop Bag
  • USB Port-powered
  • High Retention USB Connector
  • USB 2.0 (12 Mbps) Compatible
  • RS-485 Data Rates Up to 921.6 Kbps
  • Removable Terminal Block For Easy Wiring
  • Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)
Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution.

Models 485USBTB-2W-x and 485USBTB-4W-x offer this solution in a space saving, USB port-powered package. Select the 485USBTB-2W-x for RS-485 2-wire applications or the 485USBTB-4W-x for RS-485 4-wire applications. Models 485USBTB-2W-LS and 485USBTB-4W-LS feature a “locked serial number”. A USB cable is included.

Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device will show up as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications.
ProdGrafik

SPECIFICATIONS

SERIAL TECHNOLOGY
RS-485 2-Wire Data A(-), Data B(+), Ground
RS-485 4-Wire TDA(-), TDB(+), RDA(-), RDB(+), Ground
Connector Removable Terminal Block (28 to 16 AWG)
Data Rate Up to 921.6 Kbps
USB TECHNOLOGY
Connector USB Type B Female (High Retention)
Standard 2.0 (Backward Compatible)
Data Rate 12 Mbps
POWER
Source USB Port
Input Voltage 5 VDC
Consumption ~ 0.5 W (Low power device, draws less than 100 mA)
SOFTWARE
Driver CD Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)
MECHANICAL
Dimensions 6.5 x 3.2 x 1.6 cm (2.6 x 1.3 x 0.6 in)
Enclosure In-line mounted, plastic
Weight 0.23 lbs (104.3 g) with USB Cable
ENVIRONMENTAL
Operating Temperature 32 to 158 °F (0 to 70 °C)
Storage Temperature -40 to 185 °F (-40 to 85 °C)
Operating Humidity 0 to 95% (Non-condensing)
MTBF 1869313 hours
MTBF Method Parts Count Reliability Prediction
REGULATORY
Approvals FCC, CE
CERTIFICATIONS
2004/108/EC Electromagnetic Compatibility Directive
2011/65/EU Reduction of Hazardous Substances Directive
EN 55022: +AC Information Technology Equipment - Class B RF Emissions
EN 61000-6-1 Generic immunity standard for residential, commercial and light -industrial environments
EN 61000-4-2 ESD Immunity
EN 61000-4-3: +A2 Radiated Immunity
EN 61000-4-4 EFT/Burst Immunity
EN 61000-4-6 RF Conducted Immunity




ORDERING INFORMATION

MODEL NUMBER DESCRIPTION
485USBTB-2W USB to RS-485 2-Wire Converter
485USBTB-4W USB to RS-485 4-Wire Converter
485USBTB-2W-LS USB to RS-485 2-Wire Converter (Locked Serial Number)
485USBTB-4W-LS USB to RS-485 4-Wire Converter (Locked Serial Number)
