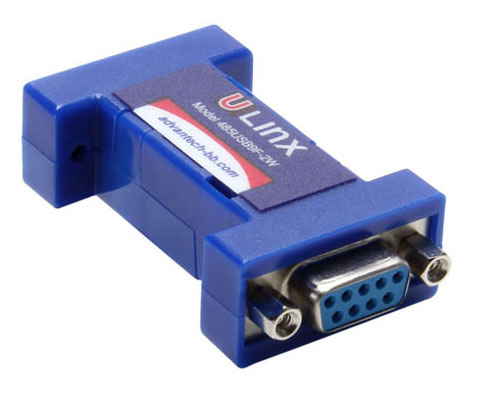

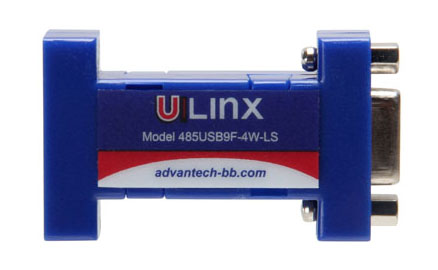

Advantech BB-485USB9F

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 485USB9F-2W-x and 485USB9F-4W-x offer this solution in a space saving, USB port powered package.

Simply install the drivers and plug the converter into an available USB port on your computer or USB hub. The device will show up as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. Choose the 485USB9F-2W-x for RS-485 2-wire applications or the 485USB9F-4W-x for RS-485 4-wire applications. A one meter USB cable is included. Locked serial number versions are also available.

SPECIFICATIONS

SERIAL TECHNOLOGY
RS-485 2-Wire	Data A(-), Data B(+), Ground
RS-485 4-Wire	TDA(-), TDB(+), RDA(-), RDB(+), Ground
Connector	DB9 Female
Data Rate	Up to 921.6 Kbps
USB TECHNOLOGY
Connector	USB Type B Female
Standard	2.0 (Backward Compatible)
Data Rate	12 Mbps
POWER
Source	USB Port
Input Voltage	5 VDC
Consumption	~ 0.5 W (Low power device, draws less than 100 mA)
SOFTWARE
Driver CD	Windows XP, 7 (32/64 bit), 8 (32/64 bit), 8.1 (32/64), 10 (32/64)
MECHANICAL
Dimensions	5.8 x 3.2 x 1.6 cm (2.3 x 1.3 x 0.6 in)
Enclosure	In-line mounted, plastic
Weight	0.23 lbs (104.3 g) with USB Cable
ENVIRONMENTAL
Operating Temperature	32 to 158 °F (0 to 70 °C)
Storage Temperature	-40 to 185 °F (-40 to 85 °C)
Operating Humidity	0 to 95% (Non-condensing)
MTBF 2-Wire	2130833 hours
MTBF 4-Wire	1869313 hours
MTBF Method	Parts Count Reliability Prediction
REGULATORY
Approvals	FCC, CE
CERTIFICATIONS
2014/30/EU	Electromagnetic Compatibility Directive
2011/65/EU	Reduction of Hazardous Substances Directive
EN 55022: +AC	Information Technology Equipment - Class B RF Emissions
EN 61000-6-1	Generic immunity standard for residential, commercial and light -industrial environments
EN 61000-4-2	ESD Immunity
EN 61000-4-3	Radiated Immunity
EN 61000-4-4	EFT/Burst Immunity
EN 61000-4-5	Surge Immunity
EN 61000-4-6 RF	Conducted Immunity

ORDERING INFORMATION

MODEL NUMBER	DESCRIPTION
BB-485USB9F-2W	USB to RS-485 2-Wire Converter
BB-485USB9F-4W	USB to RS-485 4-Wire Converter
BB-485USB9F-2W-LS	USB to RS-485 2-Wire Converter (Locked Serial Number)
BB-485USB9F-4W-LS	USB to RS-485 4-Wire Converter (Locked Serial Number)
