Multi-Tech Conduit AP

Access Point for LoRa Technology LoRaWAN to IP Border Gateway

Multi-Tech Conduit AP
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • Ethernet RJ-45 10/100 BaseT for IP backhaul
  • Optional 4G-LTE IP backhaul
  • LoRa Omni-Directional internal antenna with +2 dBi gain for 868/915 MHz ISM band
  • Built-in LoRa Network Server and Packet Forwarder
  • Models available with external LoRa antenna for improved performance

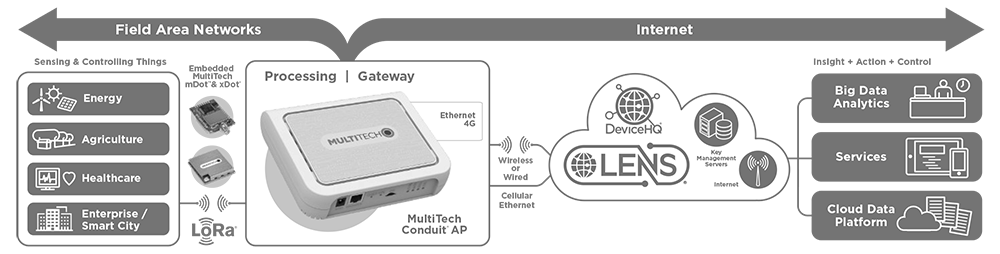

The Conduit® AP conveniently provides deep in-building connectivity and improved performance for network operators and enterprises connecting thousands of IoT assets by harnessing the power of the LoRaWAN® protocol.

Easy to deploy, the Conduit AP access point extends LoRa® connectivity in commercial buildings like hotels, convention centers, offices and retail facilities providing coverage in difficult to reach areas cell tower or rooftop deployments may not penetrate.

The Conduit AP offers a development environment for software developers and IT professionals alike. mPower™ edge intelligence features an easy-to-use graphical interface set-up and includes a built-in LoRa Network Server and Packet Forwarder to connect locally clustered assets on a private LoRaWAN network directly to your choice of IoT data platforms. The Conduit AP extends complex processing to the edge to reduce upstream communication and operational costs. The Conduit AP provides Ethernet IP backhaul or optional 4G-LTE IP backhaul.

Commercial buildings and retail facilities present unique installation challenges for installers, specifically in regards to the Access Point location and the availability of power. The Conduit AP offers models with several power options including Power over Ethernet that overcome these challenges and simplify the installation process.


mPower™ Edge Intelligence

mPowerTM Edge Intelligence is a new embedded software offering, building on its popular application enablement platform, to deliver programmability, network flexibility, enhanced security and manageability for scalable Industrial Internet of Things (IIoT) solutions.


KEY BENEFITS

  • Provide Improved Service Level Agreements for LoRa
  • Affordable LoRa connectivity in or around commercial buildings
  • Configurable Ethernet and 4G-LTE interfaces for Primary or Secondary WAN
  • Quick and easy to deploy
  • Certified and carrier approved
ProdGrafik

HARDWARE SPECIFICATIONS



Model MTCAP-L4E1-868 /
MTCAP2-L4E1-868
MTCAP-868 /
MTCAP2-868
Mobile Network Operator European Network Operators Non-Cellular
Performance 4G-LTE Category 4 N/A
Fallback 3G - HSPA+, 2G - GPRS
Frequency Band (MHz) 4G: B1(2100), B3(1800), B7(2600), B8(900), B20(800), B28A(700)

3G: B1(2100), B3(1800), B8(900)

2G: B3(1800), B8(900)
Packet Data (LTE FDD) Up to 150 Mbps peak downlink
Up to 50 Mbps peak uplink
Input Voltage 5 VDC 2.5A input provided by 100-240 VAC 50/60 Hz 0.4A external adaptor
Power over Ethernet Standard (PoE Models) EEE 802.3at
Processor & Memory ARM9 processor with 32-Bit ARM & 16-Bit Thumb instruction sets
  • 400 MHz
  • 16K Data Cache
  • 256 MB Flash Memory
  • 16K Instruction Cache
  • 128X16M DDR RAM
  • LoRa Specifications
    LoRa Frequency Band 868MHz
    LoRa Channel Plan EU868 (EU863 – 870)
    Channel Capacity 8-channels (half-duplex)
    LoRa Maximum Output
    PowerInternal antenna models
    Maximum EIRP: 13.3 dBm – 25.8 dBm*
    LoRa Maximum Output Power
    External antenna models
    Maximum EIRP: 14 dBm – 27 dBm**
    Connectors
    Power 2.5mm, 5 Volt power jack
    Ethernet RJ45 Ethernet jack (10/100 port)
    SIM 3FF Micro SIM None
    Antennas (-001A Models) No external antenna connections (All antennas are internal to chassis)
    Antennas (-041A & 042A Models) LoRa: Reverse polarity female SMA
    Cellular: No external antenna connection. Internal only
    Physical Description
    Dimensions (L x W x H) 165 (6.5) x 135 (5.3) x 36 (1.4) mm (in)
    Weight 1.5 kg (3.3 lbs)
    Chassis Type PC-ABS (polycarbonate-ABS) Designed for IP30 rating
    Environmental
    Operating Temperature 0° to +70° C ***
    Storage Temperature -40° to +85°C
    Relative Humidity 20% to 90%, non-condensing
    Certifications
    EMC Compliance ROHS Directive 2011/65/EU EN 50581:2012
    RED Directive 2014/53/EU. Article 3.1b (EMC)
    EN 301 489-1 V2.1.1 (General)
    EN 301 489-3 V2.1.1 (LoRa/SRD)
    Draft EN 301 489-52 V1.1.0 (Cellular)
    ROHS Directive 2011/65/EU EN 50581:2012
    RED Directive 2014/53/EU. Article 3.1b (EMC)
    EN 301 489-1 V2.1.1 (General)
    EN 301 489-3 V2.1.1 (LoRa/SRD)
    Radio Compliance RED Directive 2014/53/EU. Article 3.2 (Radio)
    EN 300 220-2 V3.1.1 (LoRa/ISM Radio)
    EN 301 511 V12.5.1 (GSM)
    EN 301 908-1 V11.1.1 (IMT Cellular)
    RED Directive 2014/53/EU. Article 3.2 (Radio)
    EN 300 220-2 V3.1.1 (LoRa/ISM Radio)
    Safety Low Voltage Directive (LVD) 2014/35/EU Article. 3.1a
    IEC 60950-1 2nd Edition + Am2:2013
    EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
    IEC 62368-1:2014 (Second Edition), EN 62368-1:2014 + AC:2017 (Second Edition)
    EN 62311:2008 (MPE/RD Exposure)
    Mobile Network
    Operator Approvals
    GCF Certified Cell Module N/A
    Quality MIL-STD-810G: High Temp, Low Temp, Random Vibration.
    SAE J1455: Transit Drop & Handling Drop, Random Vibration, Swept-Sine Vibration.
    IEC68-2-1: Cold Temp. IEC68-2-2: Dry Heat


        * Maximum EIRP is 13.3 dBm for most of the band, except 25.8 dBm at 869.4 – 869.65
      ** Maximum EIRP is 14 dBm for most of the band, except 27 dBm at 869.4 – 869.65
    *** Operating temperature excluding power supply. Power supply UL listed at 40° C.



    ORDERING INFORMATION



    MultiTech Conduit® AP 4G LTE Models (External LoRa Antenna)
    Model Description
    MTCAP2-L4E1-868-042A-POE LTE Cat 4 mPower Programmable Access Point, 8-channel,
    868 MHz with external LoRa antenna,
    Power over Ethernet and Accessory Kit #1 (Europe)
    MTCAP-L4E1-868-041A LTE Cat 4 mPower Programmable Access Point, 8-channel,
    868 MHz with external LoRa antenna,
    DC power and Accessory Kit #2 (Europe)
    MultiTech Conduit® AP 4G LTE Models (Internal LoRa Antenna)
    Model Description
    MTCAP2-L4E1-868-002A-POE LTE Cat 4 mPower Programmable Access Point, 8-channel,
    868 MHz with internal LoRa antenna,
    Power over Ethernet and Accessory Kit #4 (Europe)
    MTCAP-L4E1-868-001A LTE Cat 4 mPower Programmable Access Point, 8-channel,
    868 MHz with internal LoRa antenna,
    DC power and Accessory Kit #3 (Europe)
    MultiTech Conduit® AP Ethernet-Only Models (External LoRa Antenna)
    Model Description
    MTCAP2-868-042A-POE Ethernet-only mPower Programmable Access Point 8-channel,
    868 MHz with external LoRa antenna,
    Power over Ethernet and Accessory Kit #1 (Europe)
    MTCAP-868-041A Ethernet-only mPower Programmable Access Point 8-channel,
    868 MHz with external LoRa antenna,
    DC power and Accessory Kit #2 (Europe)
    MultiTech Conduit® AP Ethernet-Only Models (Internal LoRa Antenna)
    Model Description
    MTCAP2-868-002A-POE Ehernet-only mPower Programmable Access Point 8-channel,
    868 MHz with internal LoRa antenna,
    Power over Ethernet and Accessory Kit #4 (Europe)
    MTCAP-868-001A Ethernet-only mPower Programmable Access Point 8-channel,
    868 MHz with internal LoRa antenna,
    DC power and Accessory Kit #3 (Europe)
    ADDITIONAL ACCESSORIES
    Model Description
    PS-5VCB-SBC-U-Global 100-240VAC/5VDC Power Supply w/Push-on Barrel and region-specific power blades (US, UK, EU, AU/NZ)
    • Replacement power supply (-001 and -041 models)
    • Accessory for non-POE applications (-042 models)
    AN868-915A-1HRA 868-915 MHz RP-SMA Antenna, 8" (3.0 dBi)
    • Replacement LoRa antenna (-041 and -042 models)
    CA-RJ-45 Ethernet Cable (RJ-45, 6 ft)
    • Replacement Ethernet Cable
    PS-56V-POE-EU-1 Power over Ethernet Injector
    • Single Port 30W Power over Ethernet Transformer with EU Power Cord
    • Accessory for PoE models (-042 models)
    • Also available in 5-packs
    PS-56V-POE-GB-1 Power over Ethernet Injector
    • Single Port 30W Power over Ethernet Transformer with GB Power Cord
    • Accessory for PoE models (-042 models)
    • Also available in 5-packs
