Lanner V3S

prodgraf

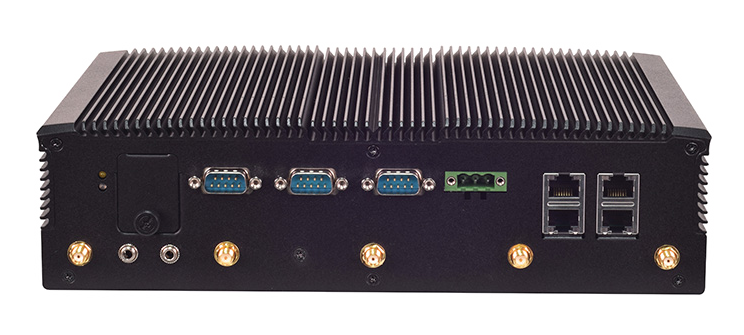

Fanless In-vehicle Surveillance Computer with Intel® Atom™ x7-E3950 Processor



Eigenschaften


Beschreibung

The V3S is targeted for video surveillance, recording and analytics. As a fanless rugged vehicle NVR system, V3S features next-generation Intel® x86 SoC, rich I/O functionality and environmental endurance, making it highly applicable in smart bus surveillance.

V3S features the new generation 14 nm Intel® Atom™ x7-E3950 SoC (formerly Apollo Lake). This processor consumes low volume of power and offers performance upgrade for vehicle computing needs from previous generation of Atom™ processors.

V3S boasts an abundance of I/O peripheral connectivity including 2 x serial COM ports, 2x video output by DVI-D, USB and Digital I/O ports, 6x RJ-45 ports (4 with PoE) and removable SATA storage bay. To enable wireless network connectivity, V3S offers 2 mini-PCIe sockets with swappable dual SIM slot supporting 3G/4G/LTE cellular communications. In addition, the compact system comes with an option of CAN bus for concerns of driving behavior analysis.

V3S is compliant with E13 standard and has passed MIL-STD-810G shock and vibration resistance certifications to ensure proper operations when traveling on non-flat surfaces. Temperature is another concern when installed within a vehicle interior. Therefore, V3S is built to support wide temperature range, from -40 to 70°C.



ProdGrafik

Weitere Informationen


Specifications



Platform
CPU Intel® Atom™ x7-E3950
Chipset N/A
BIOS AMI SPI Flash BIOS
Memory Technology DDR3L 1866 SO-DIMM Socket x1
Memory Capacity Up to 8GB
Memory Socket 1 x 204-pin SODIMM
Storage
SATA storage 1x Removable 2.5” drive bay (HDD/SSD is not included)
I/O
Ethernet controller 3x Intel i210IT
Graphic controller Intel® Integrated HD Graphics 505
Default LAN 6x GbE RJ45 (4x PoE)
Display output 2x DVI-D, resolution up to 1920x1200
GPS u-blox NEO-M8N/ADXL 345
Digital I/O 8x DI 5V TTL and 8x DO 12V TTL, 2x DI (from MCU) 3.3V TTL 1x 12V with 1A dry relay
USB 2.0 2 x Type A
Power and Mechanical
Power input Supports DC 9~36V level, ATX mode support ignition delay on/off control
Expansion 1x Full Size Mini-PCIe with dual SIM card reader, 1x Half Size Mini-PCIe, 1x External Mini-PCIe 3.0
Processor cooling Passive CPU heatsink
System cooling Fanless design with corrugated aluminum
Fanless Yes
OS and Certifications
Operating System Windows 10, Linux: Redhat Enterprise 5, Fedora 14. Linux Kernel 2.6.18 or later
Certifications CE Class A, FCC Class A, RoHS, E13 include ISO 7637-2, SAE J1455&J1113-11
Physical and Environmental
Vibration MIL-STD-810G, Method 514.6
Storage temperature -40°C to 85°C
Operating temperature -40°C to 70°C
Operating humidity 5% to 95% (non-condensing)
Dimensions (W x H x D) 273.8 mm x 73 mm x 185 mm (10.78" x 2.87" x 7.28")
Weight 4 kg (8.8 lbs)
Internal RTC Yes



 Ordering information

V3SA Fanless In-vehicle Surveillance Computer with Intel® Atom™ x7-E3950 Processor



PDF

Dokumentation PDF Lanner V3S Datasheet (338.2 kB)
