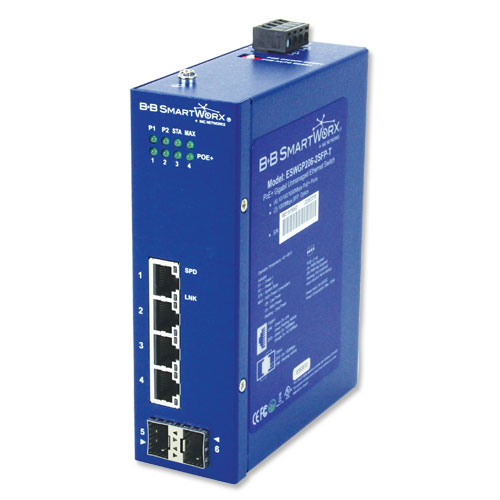

Advantech BB-ESWGP206-2SFP-T

The ESWGP206-2SFP-T is an Industrial PoE+ Ethernet switch that complies with IEEE 802.3at standards. It provides four PoE+ 10/100/1000Mbps copper ports supplying up to 30W of power to PD devices such as CCTV and WI-FI. Two 1000Mbps SFP ports are available to support gigabit fiber.

The ESWGP206-2SFP-T also provided remote PD reset function to help eliminate the cost of sending personal to site. Unmanaged and easy to install in a variety of Ethernet applications, it provides PoE+, dual power inputs, wide temperature and an SFP form factor. The ESWGP206-2SFP-T is designed to work in hard to reach and harsh environments.

Power over Ethernet PoE+ 802.3at provides 30W of power per port and is backwards compatible with 802.3.af devices. The switch detects and classifies a PD device before providing the required power to the PD device. PoE power simplifies the installation of PD devices by eliminating the need for additional cable and power supplies.

Dual Power Input: To reduce the risk of power failure, the ESWGP206- 2SFP-T provides two 24 to 52 VDC power inputs. If the power fails, the switch will automatically use the secondary power input.

Flexible Mounting: The switch features a space saving IP30 metal enclosure that can be DIN or Panel mounted.

Small Form-factor Pluggable (SFP) Port: The SFP Port provides flexibility when planning a network. The slot can accept any MSA- compliant SFP module. Gigabit fiber types for SM,MM & SSF.

Wide Operating Temperature: With an operating temperature of -40 to 85°C (-40 to 185°F), this switch is suitable for use in some of the harshest industrial environments.

Remote PoE+ Reset: Dip switch selectable, the PoE+ reset works on fiber loss off signal on both slots. PoE+ reset is an advanced function that, when enabled, will force the PSE output power to reset when LINK state is lost on the SFP ports

Easy Troubleshooting: LED indicators allow you to quickly diagnose problems.

SPECIFICATIONS

TECHNOLOGY


Standard
IEEE802.3, 802.3u, 802.3x, 802.3z,802.3ab, 802.3af/at

Processing Type
Store and forward

Broadcast Storm
Disabled

Flow Control
Full Duplex Flow Control, Half Duplex
Back Pressure Control

Protocols
CSMA/CD (Carrier Sense Multiple Access/Collision Detect)



SWITCH PROPERTIES


MAC Table Size
2W max.

Packet Buffer Size
128K

Jumbo Frame Size
Supports up to 9720 bytes



INTERFACE


RJ-45 Port
Auto-negotiation 10/100/1000Base-T,
Full/Half Duplex, Auto-MDI/MDIX

Fiber Ports
SFP form factor for MSA-compliant Gigabit SFPs

PoE+ Pinout
V+, V+, V-, V-, for 1,2,3,6 Alternative A

LED Indicators
P1, P2, 10/100/1000Mbps, POE+ (1~4)

DIP Switch
DIP 1- POE ON/OFF RESET
DIP 2 – POE AUTO RESET



POWER REQUIREMENTS


Input Voltage
24 to 52VDC redundant power inputs

Power Budget
130W

Input Connection
Standard 4-pin terminal block



PHYSICAL CHARACTERISTICS


Case
Slim Metal Case, IP30 Design

Dimensions
4.5x14.5 x10.8cm (1.77 x 5.70 x 4.25in)

Installation
DIN Rail or Panel Mounting



ENVIRONMENTAL


Operating Temp
-40 to 85 ̊C

Storage Temp
-40 to 85 ̊C

Ambient Relative Humidity
5 to 95% (Non-condensing)



CERTIFICATIONS


Safety
IEC/UL/EN60950-1

EMI
CE, FCC Part 15, EN55022: Class A
CE EN61000-6-4 (Industrial)

EMS
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-4-11
EN61000-6-2 (Industrial)

Free Fall
IEC60068-2-32

Shock
IEC60068-2-27

Vibration
IEC60068-2-6

RoHS, REACH, WEEE

ORDERING INFORMATION

Available Modules
BB-ESWGP206-2SFP-T	Industrial PoE+ Ethernet Switch (4 Copper, 2 SFP)
