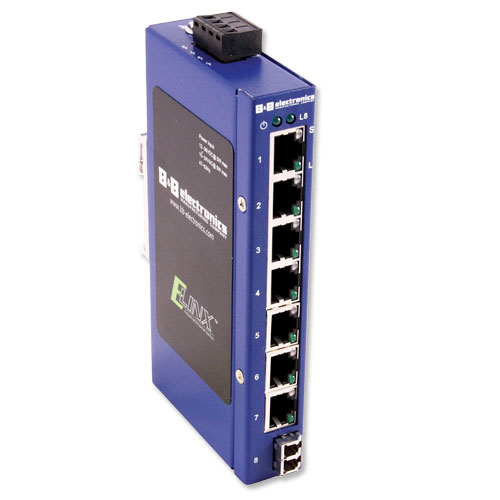

Advantech BB-ESW108 Serie

Designed to fit many applications, the ESW105 and ESW108 series are more than just an Ethernet switch with low pricing. They are plug-and-play industrial Ethernet Switches with an ultra compact IP30 DIN rail case, 6 way mountable panel brackets, LEDs for Power, (Link / Speed / Activity for each port), 12 to 36 VDC and 10 to 24 VAC power inputs with removable terminal blocks. These switches are perfect for any applications that require special protection from hash environments.

Choose a switch with five or eight copper ports, or a combination of copper and fiber ports. Multi-mode fiber models extend range up to 2 km. Single-mode fiber models extend range up to 20 km. All models require an external power supply (sold separately).

The switch ships with 4 panel mount clips giving the user 6 different ways to panel mount the unit.

SPECIFICATIONS

TECHNOLOGY
Standards:	IEEE802.3, 802.3u, 802.3x
Processing Type:	Store and forward with IEEE802.3x full duplex,non-blocking flow control
Flow Control:	IEEE802.3x flow control, back pressure flow control
Packet Buffer Memory:	64K bytes
Address Table Size	2K MAC Addresses
INTERFACE
RJ45 Ports:	10/100BaseT(X) auto negation, Full/Half duplex, auto MDI/MD-X
Fiber Ports:	100BaseFX, (multi-mode or single–mode with LC connectors)
LED Indicators:	Power, (Link / Speed / Activity for each port)
POWER
Input Voltage	12 to 36 VDC and 10 to 24 VAC
Power Consumption	4.00 W Max
Input Connection	Removable Terminal Block
Protection	Reverse Polarity Protection
ENVIRONMENTAL
Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature	-40 to 80°C (-40 to 176°F)
Humidity	10 to 95% Non-condensing
MTBF	200,000 hours
MTBF Calculation	Parts count reliability prediction
MECHANICAL
Enclosure	IP30 DIN mount metal case
Dimensions (5 ports)	H 10.0 x W 2.5 x D 7.5 mm (3.94 x 0.98 x 2.95in)
Dimensions (8 ports)	H 145 x W 24 x D 75mm (5.71 X 0.94 x 2.95in)
Installation	35 mm DIN or 6 way panel mount
Fiber Optics
Fiber type Distance Wavelength Transmit Power Receive Sensitivity Multi-mode 2 km 1310 nm -. 23.5 to -. 14 dBm ≤ -. 35 dBm Single-mode 20 km 1310 nm -. 15 to -. 8 dBm ≤ -. 35 dBm
REGULATORY APPROVALS
	CE, FCC, RoHS
HAZARDOUS LOCATIONS
	UL/cUL Class I Div 2 Groups A,B,C, and D
SPECIFICATIONS-LEVEL 3, EN 61000-6-2: 2006 GENERIC STANDARTS FOR {HEAVY) INDUSTRIAL ENVIRONMENTs
Test Description Test Level Level EN 55022: 2006 + A1:2007 Class B Emissions EN 61000-4-2: 2009 Electro-Static Discharge (ESD) Enclosure Contact Enclosure Air 6kV 8kV   3 3 EN61000-4-3: 2006+A1:2008 Radiated Field Immunity (RFI) Enclosure Ports 10V/m   3 EN61000-4-4:2004 Burst (Fast Transient) Signal Ports DC Ports 1kV@2.5Khz 2kV 3 3 EN61000-4-5:2006 Surge Signal Ports DC Power Ports 1kV 2kV   3   3 EN61000-4-6: 2009 Induced (Conductive) RFI Signal Ports DC Power Ports 10 V RMS 10 V RMS   3   3

ORDERING INFORMATON

Model Number	10/100 Copper	Multi-Mode Fiber	Single-Mode Fiber
BB-ESW108	8
BB-ESW108-ML	7	1 (LC)
BB-ESW108-SL	7		1 (LC)

ACCESSORIES

BB-DFMM-LCLC-3M	- Multi-Mode Duplex Fiber Cable, LC to LC, 3 Meter
BB-MDR-20-24	- DIN rail mount power supply 24VDC, 1.0 A output power
BB-MDR-40-24	- DIN rail mount power supply 24VDC, 1.7 A output power
BB-EIRSP1	- Industrial DIN rail mount Ethernet Surge Suppressor
